1.3inch Long Body RJ45 Connector with Integrated Magnetics

2020-06-29 10:19:02
1.3inch Long Body RJ45 Connector with Integrated Magnetics 1.3inch Long Body RJ45 Connector with Integrated Magnetics 1.3inch Long Body RJ45 Connector with Integrated Magnetics

Product Details:

Place of OriginGuangdong, China (Mainland)Part NumberB50(151-06)F4-243-P223-F52
Brand NameB-TOPTypeRJ45
ApplicationPCBGenderFemale
Port1x1LEDGreen/Yellow

Detailed Product Description:

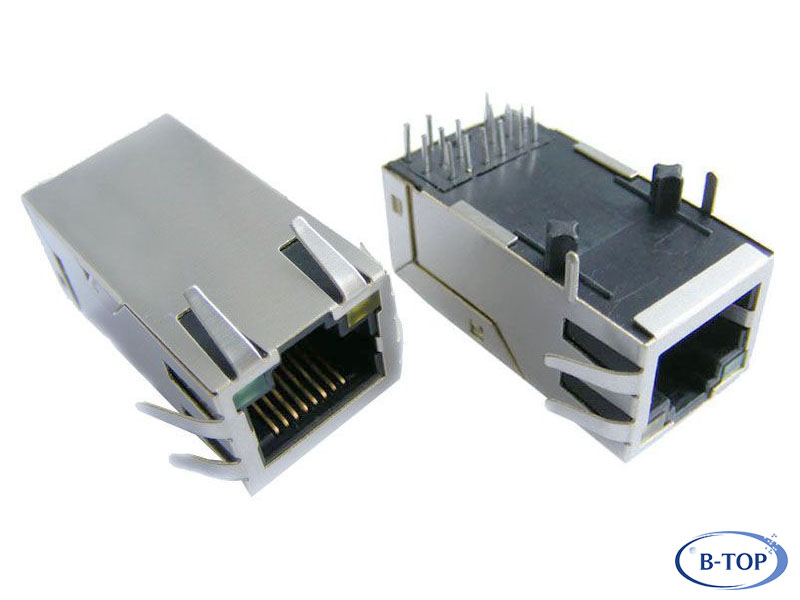

1X1 TAB UP 1.3inch Long body RJ45 connector with 1000base transformer, with LED(left green right yellow), with EMI fingers.

Meet or exceeds IEEE802.3 standard. Comply with RoHS.

Main use

  • Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge…
  • PC motherboard
  • Notebook

More Tab UP Magnetic RJ45 Jack

View the full list of Tab UP Magnetic RJ45 Jack Connector on the new website.

Part Number Size Speed Schematic PoE LED EMI
Spring
Gold
Plating
BT50S(27-11)F4-03A-P213-B52 21.35*15.9*13.5 100M F4-03A   G/Y No 6u"
B50S(27-12)F4-239-P123-B52 21.35*15.9*13.5 100M F4-239   Y/G Yes 6u"
B50S(27-16)F4-117-P223-B52 21.35*15.9*13.5 100M F4-117   G/Y Yes 6u"
B50S(27-19)F4-03A-P223-B52 21.35*15.9*13.5 100M F4-03A   G/Y Yes 6u"
B50S(27-22)F4-03A-P213-B52 21.35*15.9*13.5 100M F4-03A   G/Y No 6u"
B50S(28-07)G8-85-P223-B52 21.35*15.9*13.5 Gigabit G8-85   G/Y Yes 6u"
B50S(28-09)G8-96-P023-B52 21.35*15.9*13.5 Gigabit G8-96   None Yes 6u"
B50S(28-16)G8-09-P623-B52 21.35*15.9*13.5 Gigabit G8-09   GO/Y Yes 6u"
B50S(28-20)G8-96-P323-B52 21.35*15.9*13.5 Gigabit G8-96   G/G Yes 6u"
B50S(28-21)G12-95-P626-B52 21.35*15.9*13.5 Gigabit G12-95   GY/G Yes 50u"
B50S(28-27)G8-140-P623-B52 21.35*15.9*13.5 Gigabit G8-140   GO/Y Yes 6u"
B50S(28-29)G12-95-P223-B52 21.35*15.9*13.5 Gigabit G12-95   G/Y Yes 6u"
B50S(28-31)G8-164-P223-B52 21.35*15.9*13.5 Gigabit G8-164   G/Y Yes 6u"
B50S(28-39)G8-174-P623-B52 21.35*15.9*13.5 Gigabit G8-174   G/GY Yes 6u"
B50S(28-40)PF6-258A-P223-B52 21.35*15.9*13.5 100M PF6-258A PoE G/Y Yes 6u"
B50S(28-42)G8-98-P223-B52 21.35*15.9*13.5 Gigabit G8-98   G/Y Yes 6u"
B50S(28-43)G8-09-P223-B52 21.35*15.9*13.5 Gigabit G8-09   G/Y Yes 6u"
B50S(28-45)G8-107-P123-B52 21.35*15.9*13.5 Gigabit G8-107   Y/G Yes 6u"
B50S(28-48)G8-208-P623-B52 21.35*15.9*13.5 Gigabit G8-208   GO/Y Yes 6u"
B50(28-49)G8-10K-A623-B52 21.35*15.9*13.5 Gigabit G8-10K   GO/Y Yes 6u"
B50(29-01)F4-100-P213-B52 25.4*16.2*13.5 100M F4-100   G/Y No 6u"
B50(29-02)F5-190-P213-B52 25.4*16.2*13.5 100M F5-190   G/Y No 6u"
B50(29-03)F4-24-P213-B52 25.4*16.2*13.5 100M F4-24   G/Y No 6u"
B50(29-06)FP4-198-P613-B52 25.4*16.2*13.5 100M FP4-198 PoE GO/Y No 6u"
B50(29-07)F4-24-P223-B52 25.4*16.2*13.5 100M F4-24   G/Y Yes 6u"
B50(29-15)F4-100C-P214-B52 25.4*16.2*13.5 100M F4-100C   G/Y No 15u"
B50(29-18)F4-03B-P613-B52 25.4*16.2*13.5 100M F4-03B   GR/GR No 6u"
B50(29-30)F4-17-P223-B52 25.4*16.2*13.5 100M F4-17   G/Y Yes 6u"
B50(29-33)F5-190-P213-B52 25.4*16.2*13.5 100M F5-190   G/Y No 6u"
B50(29-31)F4-240-P223-B52 25.4*16.2*13.5 100M F4-240   G/Y Yes 6u"
B50(29-35)F5-83-P213-B52 25.4*16.2*13.5 100M F5-83   G/Y No 6u"
B50(29-36)F4-24A-P223-B92 25.4*16.2*13.5 100M F4-24A   G/Y Yes 6u"
B50(29-53)F4-263-P223-B52 25.4*16.2*13.5 100M F4-263   G/Y Yes 6u"
B50(29-59)F4-100-P613-B92 25.4*16.2*13.5 100M F4-100   G/GY No 6u"
B50(29-60)F4-24-P113-B52 25.4*16.2*13.5 100M F4-24   Y/G No 6u"
B50(30-08)F4-262-P003-C52 25.4*16.2*13.5 100M F4-262   None No 6u"
B50(31-02)F4-42A-P003-B52 25.4*16.2*13.5 100M F4-42A   None No 6u"
B50(36-06)F5-190-P013-B52 25.4*16.2*13.5 100M F5-190   None No 6u"
B50(02-02)G8-87-P213-B52 25.4*16.2*13.5 Gigabit G8-87   G/Y No 6u"
B50(02-05)G8-27-P213-B52 25.4*16.2*13.5 Gigabit G8-27   G/Y No 6u"
B50(02-06)G8-86-P613-B52 25.4*16.2*13.5 Gigabit G8-86   G/GO No 6u"
B50(02-07)G8-93-P223-B52 25.4*16.2*13.5 Gigabit G8-93   G/Y Yes 6u"
B50(02-09)G8-86-P613-B52 25.4*16.2*13.5 Gigabit G8-86   GO/Y No 6u"
B50(02-10)G8-91-P613-B52 25.4*16.2*13.5 Gigabit G8-91   GO/Y No 6u"
B50(02-12)G8-102-P113-B52 25.4*16.2*13.5 Gigabit G8-102   G/Y No 6u"
B50(02-13)G8-09-P213-B52 25.4*16.2*13.5 Gigabit G8-09   G/Y No 6u"
B50(02-15)G8-09-P203-B52 25.4*16.2*13.5 Gigabit G8-09   G/Y No 6u"
B50(02-19)G8-91-P123-B52 25.4*16.2*13.5 Gigabit G8-91   Y/G Yes 6u"
B50(02-22)G8-91-P624-B52 25.4*16.2*13.5 Gigabit G8-91   GO/Y No 15u"
B50(02-23)G8-120-P223-B12 25.4*16.2*13.5 Gigabit G8-120   G/Y Yes 6u"
B50(02-26)G8-140-P623-B52 25.4*16.2*13.5 Gigabit G8-140   GO/Y Yes 6u"
B50(02-28)G8-140-P023-B52 25.4*16.2*13.5 Gigabit G8-140   None Yes 6u"
B50(02-29)G8-98-P223-B52 25.4*16.2*13.5 Gigabit G8-98   G/Y Yes 6u"
B50(02-30)G8-140-P623-B52 25.4*16.2*13.5 Gigabit G8-140   GO/Y Yes 6u"
B50(02-33)G8-197-P613-B92 25.4*16.2*13.5 Gigabit G8-197   G No 6u"
B50(02-36)G8-91-P623-B52 25.4*16.2*13.5 Gigabit G8-91   GO/Y Yes 6u"
B50(02-37)G8-212-P625-B52 25.4*16.2*13.5 Gigabit G8-212   GO/Y Yes 30u"
B50(150-07)GP8-15-P623-F52 32.6*16.6*13.5 Gigabit GP8-15 PoE GO/Y Yes 6u"
B50(150-22)G8-12-P323-F52 32.6*16.6*13.5 Gigabit G8-12   G/G Yes 6u"
B50(150-53)GP12-106-P623-F12 32.6*16.6*13.5 Gigabit GP12-106 PoE GO/Y Yes 6u"
B50(150-57)G8-13-P623-F52 32.6*16.6*13.5 Gigabit G8-13   GY/G Yes 6u"
B50(150-58)GP8-15-P623-F12 32.6*16.6*13.5 Gigabit GP8-15 PoE GY/G Yes 6u"
B50(150-60)G8-12-P623-F12 32.6*16.6*13.5 Gigabit G8-12   GY/G Yes 6u"
B50(150-68)GP8-15C-P023-F52 32.6*16.6*13.5 Gigabit GP8-15C PoE+ None Yes 6u"
B50(150-72)G8-13-P323-F52 32.6*16.6*13.5 Gigabit G8-13   G/G Yes 6u"
B50(150-73)G8-12-P623-F52 32.6*16.6*13.5 Gigabit G8-12   GO/Y Yes 6u"
B50(150-85)GP8-15A-P113-F52 32.6*16.6*13.5 Gigabit GP8-15A PoE+ Y/G No 6u"
B50(150-86)GP8-15A-P123-F52 32.6*16.6*13.5 Gigabit GP8-15A PoE+ Y/G Yes 6u"
B50(150-88)GP8-15-P623-F52 32.6*16.6*13.5 Gigabit GP8-15 PoE GY/GY Yes 6u"
B50(150-90)GP8-218-P023-B52 32.6*16.6*13.5 Gigabit GP8-218 PoE None Yes 6u"
B50(151-01)F4-27-P622-F12 32.6*16.6*13.5 100M F4-27   GY/Y Yes 6u"
B50(151-02)FP4-150-P622-F12 32.6*16.6*13.5 100M FP4-150 PoE G/GO Yes 6u"
B50(151-03)FP4-150-P623-F12 32.6*16.6*13.5 100M FP4-150 PoE GO/GO Yes 6u"
B50(151-06)F4-243-P223-F52 32.6*16.6*13.5 100M F4-243   G/Y Yes 6u"
B50(152-02)F4-27-P023-F52 32.6*16.6*13.5 100M F4-27   None Yes 6u"

Spectifications

Electrical   Mechanical
Current rating: 1 - 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120 - 150V AC   4 contacts---500g
Insulation resistance: 500MΩ Min   6 contacts---750g
Withstand voltage: 1500V RMS 50Hz or 60Hz 1 Min   8 contacts---900g
Contact resistance: 20mΩ Max   10 contacts---1050g
PoE rating: 15W, 350mA, 84V (For PoE product only) Retention strength: 7.7Kg between jack and plug
    Durability: 750 mating cycles min
Material
Housing: 1) glass filled PA66(ul 94v-0)
  2) glass filled PA46/LCP(ul 94v-0)
  3) glass filled PBT(ul 94v-0)
Spring wire: 1) 0.45mm dia phosphor bronze gold plating over nickel
  2) 0.35mm thickness phosphor bronze alloy
  selective gold plating over nickel
Shielding: 0.2mm thickness copper alloy with tin plated
Gold plating: 3μ″,6μ″,15,μ″,30μ″,50μ″
Working temperature: -20°C-70°C, -40°C-85°C
Relative humidity: 70%±10% RH

Electrical Specifications at 25°C

Insertion
Loss
dB max
Return Loss dB min Crosstalk(dB TYP) Common Mode Rejection
(dB TYP)
Hipot(Vrms)
1-100MHz 1-30MHz 30-60MHz 60-80MHz 1-30MHz 30-60MHz 60-80MHz 1-50MHz 50-150MHz
-1.0 -18 -16 -12 -40 -35 -30 -30 -20 1500

download  B50(151-06)F4-243-P223-F52.pdf
