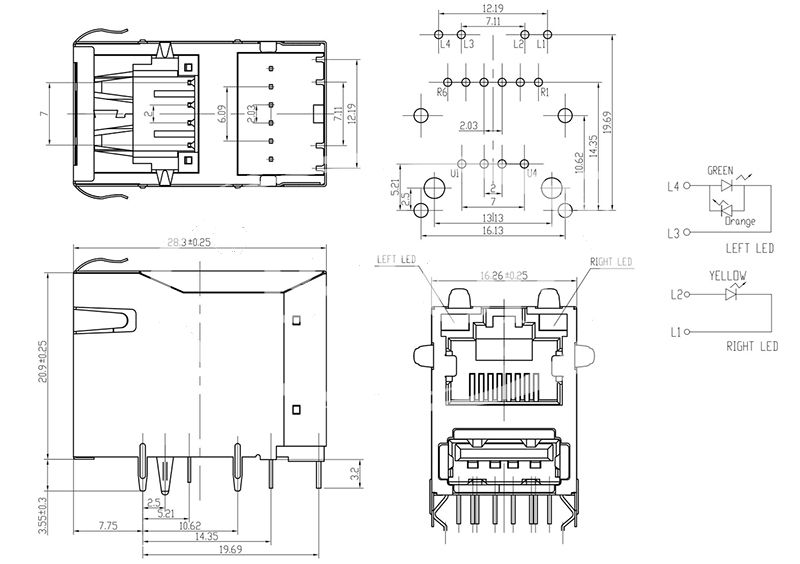

RJ45 Jack over Single USB with Integrated Magnetics 10/100 Base-TX

2018-08-01 09:35:14
RJ45 Jack over Single USB with Integrated Magnetics 10/100 Base-TX RJ45 Jack over Single USB with Integrated Magnetics 10/100 Base-TX RJ45 Jack over Single USB with Integrated Magnetics 10/100 Base-TX

Product Details:

Place of OriginGuangdong, China (Mainland)Part NumberB50(16-03)F4-43-U623-B52
Brand NameB-TOPTypeDIP/SIDE ENTRY
ApplicationPCBGenderFemale
Port1x1LEDGO/Y

Detailed Product Description:

RJ45 Jack over Single USB with Integrated Magnetics 100 Base-TX, Meet or exceeds IEEE802.3 standard and USB-A 2.0 standard.

Main use:

  • Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge...
  • PC motherboard
  • Notebook

Product List

View the full list of RJ45 USB Jack Connector on the new website.

Part Number USB Ports Schematic RJ45 Speed USB LEDs EMI
Spring
Gold
Plating
Temperature
B50(13-01)F4-43-U122-B52 1 USB F4-43 100M 2.0 Y/G Yes 6u" 0 - 70
B50(13-05)F4-43-U622-B52 1 USB F4-43 100M 2.0 GO/Y Yes 6u" 0 - 70
B50(16-03)F4-43-U623-B52 1 USB F4-43 100M 2.0 GO/Y Yes 6u" 0 - 70
B50(18-01)G8-12-U622-B52 1 USB G8-12 Gigabit 2.0 GO/Y Yes 6u" 0 - 70
B50(03-01)F5-12-U613-C52 2 USB F5-12 100M 2.0 Y/GO No 6u" 0 - 70
B50(03-05)F5-226-U213-C52 2 USB F5-226 100M 2.0 G/Y No 6u" 0 - 70
B50(02-11)G8-111-U613-C52 2 USB G8-111 Gigabit 2.0 GO/Y No 6u" 0 - 70
B50(02-22)G8-143-U213-C52 2 USB G8-143 Gigabit 2.0 G/Y No 6u" 0 - 70
B50(02-28)G8-82-U113-C52 2 USB G8-82 Gigabit 2.0 Y/G No 6u" 0 - 70
B50(02-49)G8-217-U113-C52 2 USB G8-217 Gigabit 2.0 Y/G No 6u" 0 - 70
B50(06-02)G8-91-U613-C52 2 USB G8-91 Gigabit 3.0 Y/OG No 6u" 0 - 70
B50(06-07)G8-91-U613-C52 2 USB G8-91 Gigabit 3.0 Y/OG No 6u" 0 - 70
B50(06-11)G8-165-U623-C52 2 USB G8-165 Gigabit 3.0 GO/Y Yes 6u" 0 - 70
B50(06-18)G12-04-U613-C52 2 USB G12-04 Gigabit 2.0 GY/GY No 6u" 0 - 70
B50(06-20)G8-176-U613-C52 2 USB G8-176 Gigabit 2.0 G/YG No 6u" 0 - 70
B50(06-21)G8-165A-U623-C92 2 USB G8-165A Gigabit 3.0 GO/Y Yes 6u" -40 - 85
B50(06-23)G8-165A-U223-C92 2 USB G8-165A Gigabit 3.0 G/Y Yes 6u" -40 - 85
B50(06-26)G8-91B-U613-C52 2 USB G8-91B Gigabit 3.0 Y/OG No 6u" 0 - 70
B50(06-27)G8-91-U625-C92 2 USB G8-91 Gigabit 3.0 GY/GY Yes 30u" 0 - 70
B50(06-28)G8-165-U225-C92 2 USB G8-165 Gigabit 3.0 G/Y Yes 30u" 0 - 70
B59(02-01)W-U012-B52 2 USB     2.0 None No 6u" 0 - 70

Spectifications:

Electrical   Mechanical
Current rating: 1 - 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120 - 150V AC   4 contacts---500g
Insulation resistance: 500MΩ Min   6 contacts---750g
Withstand voltage: 1500V RMS 50Hz or 60Hz 1 Min   8 contacts---900g
Contact resistance: 20mΩ Max   10 contacts---1050g
PoE rating: 15W, 350mA, 84V (For PoE product only) Retention strength: 7.7Kg between jack and plug
    Durability: 750 mating cycles min
Material
Housing: 1) glass filled PA66(ul 94v-0)
  2) glass filled PA46/LCP(ul 94v-0)
  3) glass filled PBT(ul 94v-0)
Spring wire: 1) 0.45mm dia phosphor bronze gold plating over nickel
  2) 0.35mm thickness phosphor bronze alloy
  selective gold plating over nickel
Shielding: 0.2mm thickness copper alloy with tin plated
Gold plating: 3μ″,6μ″,15μ″,30μ″,50μ″
Working temperature: -20°C-70°C, -40°C-85°C
Relative humidity: 70%±10% RH

Electrical Specifications at 25°C

Insertion
Loss
dB max
Return Loss dB min Crosstalk(dB TYP) Common Mode Rejection
(dB TYP)
Hipot(Vrms)
1-100MHz 1-30MHz 30-60MHz 60-80MHz 1-30MHz 30-60MHz 60-80MHz 1-50MHz 50-150MHz
-1.0 -18 -16 -12 -40 -35 -30 -30 -20 1500

download  B50(16-03)F4-43-U623-B52.pdf
