Gigabit Quad-Port 2*2 RJ45 Modular Connector with Bicolor LED

2022-05-25 10:57:27
Gigabit Quad-Port 2*2 RJ45 Modular Connector with Bicolor LED Gigabit Quad-Port 2*2 RJ45 Modular Connector with Bicolor LED Gigabit Quad-Port 2*2 RJ45 Modular Connector with Bicolor LED

Product Details:

Place of OriginGuangdong, China (Mainland)Part NumberB59(312-06)G8-56-2623-C12
Brand NameB-TOPTypeDIP/SIDE ENTRY
ApplicationPCBGenderFemale
Port2x2LEDGY/GY

Detailed Product Description:

Gigabit Quad-Port 2*2 RJ45 Modular Connector with Bicolor LED.

Meet or exceeds IEEE802.3 standard.

Main use

  • Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge...

More 2x2 Magnetic RJ45 Jack

View the full list of 2xN Stacked Magnetic RJ45 Jack Connector on the new website.

Part Number Speed Schematic PoE LEDs EMI
Spring
Gold
Plating
B59(311-30)F4-156-2223-C12 100M F4-156   G/Y Yes 6u"
B59(311-32)FP4-162-2123-C12 100M FP4-162 PoE Y/G Yes 6u"
B59(311-38)FP4-182-2223-C12 100M FP4-182 PoE G/Y Yes 6u"
B59(311-81)F4-42A-2222-C12 100M F4-42A   G/Y Yes 6u"
B59(311-85)F4-156-2623-C12 100M F4-156   GY/GY Yes 6u"
B59(311-88)F4-177-2612-C12 100M F4-177   GY/YG No 6u"
B59(315-01)F4-48-2223-C12 100M F4-48   G/Y Yes 6u"
B59(315-05)F4-48-2322-C12 100M F4-48   G/G Yes 6u"
B59(315-06)F4-177-2612-C12 100M F4-177   GY/YG No 6u"
B59(315-07)F4-156-2223-C12 100M F4-156   G/Y Yes 6u"
B59(315-08)F4-156-2722-C12 100M F4-156   G/Y Yes 6u"
B59(315-09)F4-48-2122-C12 100M F4-48   Y/G Yes 6u"
B59(315-10)F4-48-2323-C12 100M F4-48   G/G Yes 6u"
B59(315-11)F4-156-2213-C12 100M F4-156   G/Y No 6u"
B59(315-12)F4-03A-2213-C12 100M F4-03A   G/Y No 6u"
B59(315-13)F4-156-2123-C12 100M F4-156   Y/G Yes 6u"
B59(315-15)F4-156-2113-C12 100M F4-156   Y/G No 6u"
B59(315-51)PF4-162-2023-C12 100M PF4-162 PoE None Yes 6u"
B59(315-55)F4-03A-2022-C12 100M F4-03A   None Yes 6u"
B60(115-02)F4-02-2722-C12 100M F4-02   G/Y Yes 6u"
B60(92-01)F4-03A-2022-C12 100M F4-03A   None Yes 6u"
B59(316-01)F4-48-2123-C12 100M F4-48   G/Y Yes 6u"
B59(316-05)F4-48-2626-C12 100M F4-48   GY/GY Yes 6u"
B59(316-07)F4-03A-2223-C12 100M F4-03A   G/Y Yes 6u"
B59(311-02)G8-28-2023-C12 Gigabit G8-28   None Yes 6u"
B59(311-03)G8-56A-2023-C12 Gigabit G8-56A   None Yes 6u"
B59(311-09)G8-28-2623-C12 Gigabit G8-28   GY/GY Yes 6u"
B59(311-12)G8-10-2622-C12 Gigabit G8-10   GO/GO Yes 6u"
B59(311-22)G8-28-2223-C12 Gigabit G8-28   G/Y Yes 6u"
B59(311-25)G8-28-2124-C12 Gigabit G8-28   Y/G Yes 15u"
B59(311-26)G8-28-2623-C12 Gigabit G8-28   GO/GO Yes 6u"
B59(311-28)G8-28-2223-C12 Gigabit G8-28   G/Y Yes 6u"
B59(311-31)G8-28-2123-C12 Gigabit G8-28   Y/G Yes 6u"
B59(311-36)G8-28-2223-C12 Gigabit G8-28   G/Y Yes 6u"
B59(311-37)G8-56A-2223-C12 Gigabit G8-56A   G/Y Yes 6u"
B59(311-45)G8-10A-2623-C12 Gigabit G8-10A   GY/GY Yes 6u"
B59(311-46)G8-10-2622-C12 Gigabit G8-10   G/YG Yes 6u"
B59(311-47)G8-10-2223-C12 Gigabit G8-10   G/Y Yes 6u"
B59(311-48)G8-28-2213-C12 Gigabit G8-28   G/Y No 6u"
B59(311-49)G8-10A-2623-C12 Gigabit G8-10A   GY/GY Yes 6u"
B59(311-50)G8-10D-2623-C12 Gigabit G8-10D   YG/YG Yes 6u"
B59(311-51)G8-09-2613-C12 Gigabit G8-09   YG/YG No 6u"
B59(311-52)G8-60-2623-C12 Gigabit G8-60   GY/GY Yes 6u"
B59(311-55)G8-60-2223-C12 Gigabit G8-60   G/Y Yes 6u"
B59(311-56)G8-60-2213-C12 Gigabit G8-60   G/Y No 6u"
B59(311-57)G8-09B-2223-C12 Gigabit G8-09B   G/Y Yes 6u"
B59(311-61)G8-28-2023-C12 Gigabit G8-28   None Yes 6u"
B59(311-69)G8-60-2613-C12 Gigabit G8-60   Y/GO No 6u"
B59(311-70)G8-28-2323-C12 Gigabit G8-28   G/G Yes 6u"
B59(311-90)G12-179-2223-C12 Gigabit G12-179   G/Y Yes 6u"
B59(311-91)G8-28H-2223-C12 Gigabit G8-28H   G/Y Yes 6u"
B59(311-92)G8-101C-2225-C12 Gigabit G8-101C   G/Y Yes 30u"
B59(311-93)G8-101C-2223-C12 Gigabit G8-101C   G/Y Yes 6u"
B59(311-94)G8-28-2225-C12 Gigabit G8-28   G/Y Yes 6u"
B59(311-95)G8-195-C-2223-C12 Gigabit G8-195-C   G/Y Yes 6u"
B59(311-96)G8-196-C-2223-C12 Gigabit G8-196-C   G/Y Yes 6u"
B59(311-97)G8-199-C-2223-C12 Gigabit G8-199-C   G/Y Yes 6u"
B59(311-98)G8-28B-2223-C12 Gigabit G8-28B   G/Y Yes 6u"
B59(312-02)G8-10A-2623-C12 Gigabit G8-10A   GY/GY Yes 6u"
B59(312-05)G8-56A-2223-C12 Gigabit G8-56A   G/Y Yes 6u"
B59(312-06)G8-56-2623-C12 Gigabit G8-56   GY/GY Yes 6u"
B59(312-10)G8-10-2223-C12 Gigabit G8-10   G/Y Yes 6u"
B59(312-12)G8-118-2322-C12 Gigabit G8-118   G/G Yes 6u"
B59(312-13)G8-56E-2626-C12 Gigabit G8-56E   GY/GY Yes 50u"
B59(312-17)G8-56-2623-C12 Gigabit G8-56   GY/GY Yes 6u"
B59(312-18)G8-10A-2323-C12 Gigabit G8-10A   G/G Yes 6u"
B59(312-19)G8-56E-2623-C12 Gigabit G8-56E   GY/YG Yes 6u"
B59(312-23)G8-60A-2613-C12 Gigabit G8-60A   G/O No 6u"
B59(312-27)G8-10D-2223-C12 Gigabit G8-10D   G/Y Yes 6u"
B59(312-28)G8-10D-2324-C12 Gigabit G8-10D   G/G Yes 15u"
B59(312-03)G8-56-2723-C12 Gigabit G8-56   GY/GY Yes 6u"
B59(312-20)G8-56A-2722-C12 Gigabit G8-56A   GR/GR Yes 6u"
B59(312-41)G8-56A-2723-C12 Gigabit G8-56A   G/G Yes 6u"
B59(318-03)GP8-19-2623-C12 Gigabit GP8-19 PoE GY/GY Yes 6u"
B59(318-05)GP8-109A-2623-C12 Gigabit GP8-109A PoE GY/GY Yes 6u"
B59(318-07)GP8-19A-2023-C12 Gigabit GP8-19A PoE None Yes 6u"
B59(318-08)GP8-19B-2623-C12 Gigabit GP8-19B PoE GY/GY Yes 6u"
B59(318-10)GP8-103B-2223-C12 Gigabit GP8-103B PoE G/Y Yes 6u"
B59(318-16)GP8-19A-2123-C12 Gigabit GP8-19A PoE Y/G Yes 6u"
B59(318-20)GP8-19B-2623-C12 Gigabit GP8-19B+ PoE GO/GO Yes 6u"
B59(318-61)GP8-19B-2023-C12 Gigabit GP8-19B+ PoE None Yes 6u"
B59(318-63)GP8-70-2023-C12 Gigabit GP8-70 PoE None Yes 6u"
B59(318-64)GP8-70-2023-C92 Gigabit GP8-70 PoE None Yes 6u"
B59(318-65)GP8-70B-2024-C92 Gigabit GP8-70B PoE None Yes 15u"
B59(318-67)GP8-203-2023-C12 Gigabit GP8-203 PoE None Yes 6u"
B59(318-70)GP8-109-2623-C12 Gigabit GP8-109 PoE+   Yes 6u"
B59(318-72)GP8-235-2623-C12 Gigabit GP8-235 PoE+   Yes 6u"
B59(318-73)GP8-19S-2623-C12 Gigabit GP8-19S PoE+   Yes 6u"

Spectifications:

Electrical   Mechanical
Current rating: 1 - 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120 - 150V AC   4 contacts---500g
Insulation resistance: 500MΩ Min   6 contacts---750g
Withstand voltage: 1500V RMS 50Hz or 60Hz 1 Min   8 contacts---900g
Contact resistance: 20mΩ Max   10 contacts---1050g
PoE rating: 15W, 350mA, 84V (For PoE product only) Retention strength: 7.7Kg between jack and plug
    Durability: 750 mating cycles min
Material
Housing: 1) glass filled PA66(ul 94v-0)
  2) glass filled PA46/LCP(ul 94v-0)
  3) glass filled PBT(ul 94v-0)
Spring wire: 1) 0.45mm dia phosphor bronze gold plating over nickel
  2) 0.35mm thickness phosphor bronze alloy
  selective gold plating over nickel
Shielding: 0.2mm thickness copper alloy with tin plated
Gold plating: 3μ″,6μ″,15μ″,30μ″,50μ″
Working temperature: -20°C-70°C, -40°C-85°C
Relative humidity: 70%±10% RH

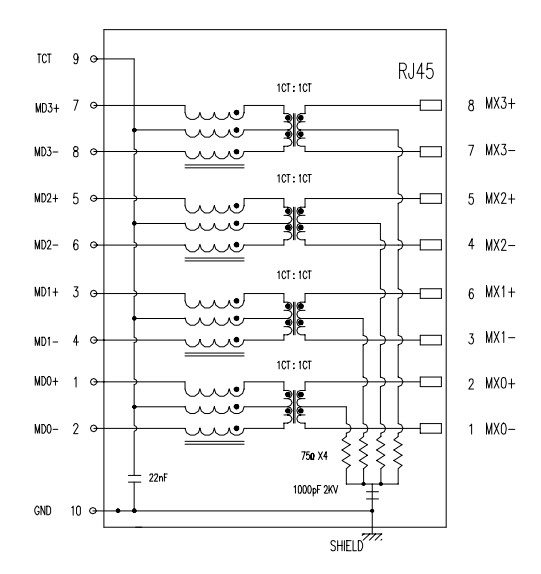

Electrical Specifications at 25°C

Insertion
Loss
dB max
Return Loss dB min Crosstalk(dB TYP) Common Mode Rejection
(dB TYP)
Hipot(Vrms)
1-100MHz 1-30MHz 30-60MHz 60-80MHz 1-30MHz 30-60MHz 60-80MHz 1-50MHz 50-150MHz
-1.0 -18 -16 -12 -40 -35 -30 -30 -20 1500

download  20160414085711228.pdf
