1X1 Vertical RJ45 Connector without Magnetics

2014-04-03 14:12:54
1X1 Vertical RJ45 Connector without Magnetics 1X1 Vertical RJ45 Connector without Magnetics

Product Details:

Place of OriginGuangdong, China (Mainland)Part NumberB52(01-05)W-A011-C52
Brand NameB-TOPTypeRJ45
ApplicationPCBGenderFemale
Port1x1LEDN/A

Detailed Product Description:

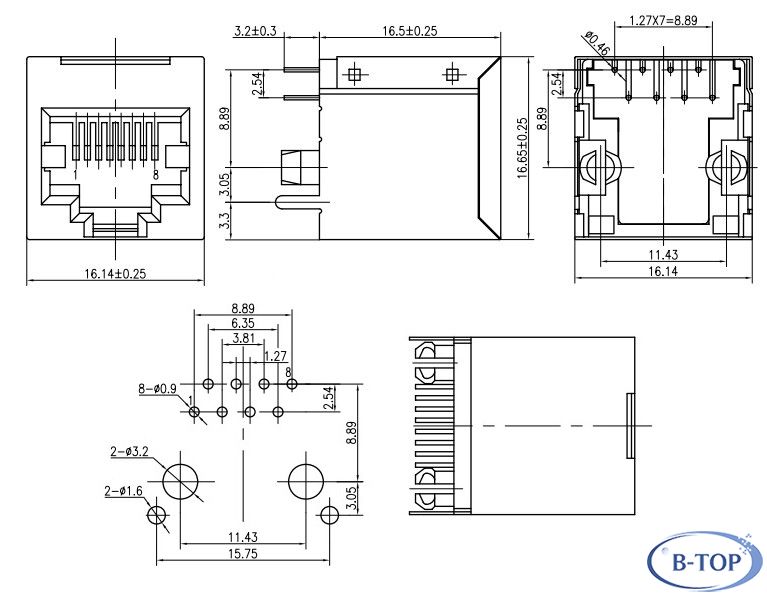

1X1 port vertical RJ45 connector without magnetics

without EMI finger without LED

Spectifications:

Electrical   Mechanical
Current rating: 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120V AC   4 contacts---500g
Insulation resistance: 500MΩ Min   6 contacts---750g
Withstand voltage: AC 1500 V RMS 50Hz or 60Hz 1 Min   8 contacts---900g
Contact resistance: 20mΩ Max   10 contacts---1050g
    Retention strength: 7.7Kg between jack and plug
    Durability: 750 mating cycles min
Material
Housing: 1)glass filled PA66(ul 94v-0)
  2) glass filled PA46/LCP(ul 94v-0)
  3) glass filled PBT(ul 94v-0)
Spring wire: 1) 0.45mm dia phosphor bronze gold plating over nickel
  2) 0.35mm thickness phosphor bronze alloy
  selective gold plating over nickel
Shielding: 0.2mm thickness copper alloy with tin plated
Gold plating : 3μ″,6μ″,15,μ″,30μ″,50μ″

Working temperature -40°C-70°C
