Single 180 degree RJ45 Modular Jack W/TRANS W/LED

2020-06-29 09:15:53
Single 180 degree RJ45 Modular Jack W/TRANS W/LED Single 180 degree RJ45 Modular Jack W/TRANS W/LED Single 180 degree RJ45 Modular Jack W/TRANS W/LED

Product Details:

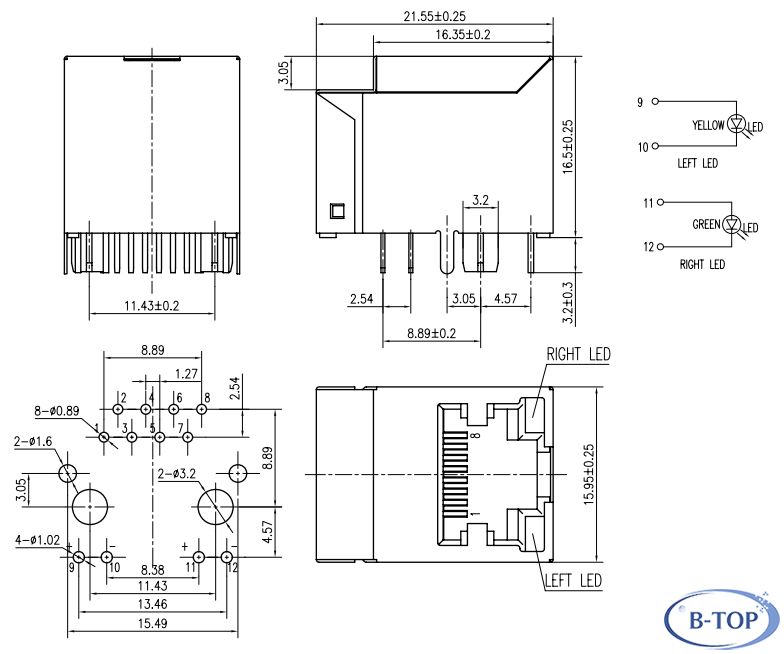

Place of OriginGuangdong, China (Mainland)Part NumberB50(650-07)F4-94-A113-B12
Brand NameB-TOPTypeDIP/SIDE ENTRY
ApplicationPCBGenderFemale
Port1x1LEDYellow,Green

Detailed Product Description:

Single 180 degree RJ45 Modular Jack W/TRANS W/LED.

Meet or exceeds IEEE802.3 standard. Comply with RoHS.

If you are going to design this part on 10/10Mbps Ethernet, we suggest you a smaller dimension part

Main use:

  • Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge...
  • PC motherboard
  • Notebook

More Vertical Magnetic RJ45 Jack

View the full list of Vertical RJ45 Jack Connector with Transformer on our new website.

Part Number Size Speed Schematic PoE LED EMI
Spring
Gold
Plating
B50(511-02)F4-42-A213-B52 16.8*16.1*16.86 100M F4-42   G/Y No 6u"
B50(511-09)F4-42-A213-B52 16.8*16.1*16.86 100M F4-42   G/Y No 6u"
B50(511-10)F4-94-A213-B52 16.8*16.1*16.86 100M F4-94   G/Y No 6u"
B50(511-11)F4-94-A113-B52 16.8*16.1*16.86 100M F4-94   Y/G No 6u"
B50(511-12)F4-03A-A113-B52 16.8*16.1*16.86 100M F4-03A   Y/G No 6u"
B50(511-15)F4-03A-A213-B52 16.8*16.1*16.86 100M F4-03A   G/Y No 6u"
B50(511-16)F4-03A-A212-B52 16.8*16.1*16.76 100M F4-03A   G/Y No 6u"
B50(511-18)F4-03A-A113-B52 16.8*16.1*16.76 100M F4-03A   Y/G No 6u"
B50(511-21)PF6-96-A313-B52 16.8*16.1*16.76 100M PF6-96 PoE G/G No 6u"
B50(511-22)F4-03A-A113-B52 16.8*16.1*16.76 100M F4-03A   Y/G No 6u"
B50(511-23)F4-94-A213-B52 16.8*16.1*16.76 100M F4-94   G/Y No 6u"
B50(511-28)F4-264-A213-B52 16.8*16.1*16.76 100M F4-264   G/Y No 6u"
B50(511-30)F4-168-A113-B52 16.8*16.1*16.76 100M F4-168   Y/G No 6u"
B50(511-32)PF6-96-A213-B52 16.8*16.1*16.76 100M PF6-96 PoE G/Y No 6u"
B50(511-33)F4-42A-A113-B52 16.8*16.1*16.76 100M F4-42A   Y/G No 6u"
B50(512-05)F4-94-A012-B52 16.8*16.1*16.86 100M F4-94   None No 6u"
B50(512-09)F4-03A-A013-B52 16.8*16.1*16.76 100M F4-03A   None No 6u"
B50(512-10)F4-03A-A013-B52 16.8*16.1*16.76 100M F4-03A   None No 6u"
B50(512-12)FP4-252-A013-B52 16.8*16.1*16.76 100M FP4-252 PoE None No 6u"
B50(512-18)PF4-196A-A013-B92 16.8*16.1*16.76 100M PF4-196A PoE None No 6u"
B50(512-21)F4-03A-A013-B22 16.8*16.1*16.76 100M F4-03A   None No 6u"
B50(512-22)F5-56-A013-B52 16.8*16.1*16.76 100M F5-56   None No 6u"
B50(512-23)F4-42A-A013-B52 16.8*16.1*16.76 100M F4-42A   None No 6u"
B50(512-27)F4-94-A013-B52 16.8*16.1*16.76 100M F4-94   None No 6u"
B50(513-01)F4-94-A003-B52   100M F4-94   None No 6u"
B50(650-07)F4-94-A113-B12 21.55*15.95*16.5 100M F4-94   Y/G No 6u"
B50(650-08)F4-94-A013-B12 21.55*15.95*16.5 100M F4-94   None No 6u"
B50(650-09)F4-94-A213-B12 21.55*15.95*16.5 100M F4-94   G/Y No 6u"
B50(650-11)FP4-178-A112-B12 21.55*15.95*16.5 100M FP4-178 PoE Y/G No 6u"
B50(650-19)G8-42-A215-B12T 21.55*15.95*16.5 Gigabit G8-42   G/Y No 30u"
B50(650-21)G8-42-A013-B12 21.55*15.95*16.5 Gigabit G8-42   None No 6u"
B50(650-27)PF4-198-A612-B12 21.55*15.95*16.5 100M PF4-198 PoE GO/Y No 6u"
B50(650-29)G8-81-A113-B12 21.55*15.95*16.5 Gigabit G8-81   Y/G No 6u"
B50(650-30)G8-62-A013-B12 21.55*15.95*16.5 Gigabit G8-62   None No 6u"
B50(650-32)G8-40-A013-B12 21.55*15.95*16.5 Gigabit G8-40   None No 6u"
B50(650-33)G8-40-A313-B12 21.55*15.95*16.5 Gigabit G8-40   G/G No 6u"
B50(650-35)G8-40-A113-B12 21.55*15.95*16.5 Gigabit G8-40   Y/G No 6u"
B50(650-42)PF4-207-A113-B12 21.55*15.95*16.5 100M PF4-207 PoE Y/G No 6u"
B50(650-45)G8-42-A113-B12 21.55*15.95*16.5 Gigabit G8-42   Y/G No 6u"
B50(650-46)G8-40-A613-B12 21.55*15.95*16.5 Gigabit G8-40   GO/GO No 6u"
B50(650-48)G8-86-A013-B12 21.55*15.95*16.5 Gigabit G8-86   None No 6u"
B50(650-49)G8-42-A115-B12T 21.55*15.95*16.5 Gigabit G8-42   Y/G No 30u"
B50(650-50)G8-62-A216-B12 21.55*15.95*16.5 Gigabit G8-62   G/Y No 50u"
B50(650-51)F4-94-A215-B12 21.55*15.95*16.5 100M F4-94   G/Y No 30u"
B50(650-53)G8-140A-A113-B12 21.55*15.95*16.5 Gigabit G8-140A PoE Y/G No 6u"
B50(650-55)G8-62-A616-B12 21.55*15.95*16.5 Gigabit G8-62   GY/GY No 50u"
B50(650-56)G8-62-A616-B12 21.55*15.95*16.5 Gigabit G8-62   G/GY No 50u"
B50(650-58)G8-62-A214-B12 21.55*15.95*16.5 Gigabit G8-62   G/Y No 15u"
B50(650-59)G8-62-A113-B12 21.55*15.95*16.5 Gigabit G8-62   Y/G No 6u"
B50(650-61)PF4-151-A113-B12 21.55*15.95*16.5 100M PF4-151 PoE Y/G No 6u"
B50(650-62)G8-62-A016-B12 21.55*15.95*16.5 Gigabit G8-62   None No 50u"
B50(650-63)PF4-207-A113-B12 21.55*15.95*16.5 100M PF4-207 PoE Y/G No 6u"
B50(650-65)G8-158-A013-B12 21.55*15.95*16.5 Gigabit G8-158   None No 6u"
B50(650-66)G8-62-A613-B12 21.55*15.95*16.5 Gigabit G8-62   GY/GY No 6u"
B50(650-81)G8-40-A213-B12 21.55*15.95*16.5 Gigabit G8-40   G/Y No 6u"
B50(650-82)G8-135-A213-B12 21.55*15.95*16.5 Gigabit G8-135   G/Y No 6u"
B50(650-92)F4-94-A114-B12 21.55*15.95*16.5 100M F4-94   Y/G No 15u"
B50(650-83)G8-158-A213-B12 21.55*15.95*16.5 Gigabit G8-158   G/Y No 6u"
B50(650-84)G8-62-A613-B12 21.55*15.95*16.5 Gigabit G8-62   G/GO No 6u"
B50(650-88)G8-38A-A613-B12 21.55*15.95*16.5 Gigabit G8-38A   GY/Y No 6u"
B50(650-89)G8-120A-A213-B12 21.55*15.95*16.5 Gigabit G8-120A   G/Y No 6u"
B50(650-95)F4-94A-A215-B12 21.55*15.95*16.5 100M F4-94A   G/Y No 30u"
B50(650-97)F4-94-A114-B92 21.55*15.95*16.5 100M F4-94   Y/G No 15u"
B50(650-98)F4-94-A313-B12 21.55*15.95*16.5 100M F4-94   G/G No 6u"
B50(650-100)G8-201-A613-B12 21.55*15.95*16.5 Gigabit G8-201   GY/G No 6u"
B50(650-102)G8-30-A213-B12 21.55*15.95*16.5 Gigabit G8-30   G/Y No 6u"
B50(650-103)FT4-180-A215-B12 21.55*15.95*16.5 100M FT4-180   G/Y No 30u"
B50(650-104)G8-091-A113-B52 21.55*15.95*16.5 Gigabit G8-091   Y/G No 6u"
B50(650-106)G8-200-A113-B52 21.55*15.95*16.5 Gigabit G8-200   Y/G No 6u"
B50(650-107)G8-200-A613-B52 21.55*15.95*16.5 Gigabit G8-200   GY/Y No 6u"
B50(660-01)F4-57-A013-B12 21.55*15.95*16.5 100M F4-57   None No 6u"
B50(660-03)F4-94-A013-B12 21.55*15.95*16.5 100M F4-94   None No 6u"
B50(660-06)F6-246-A014-B52 21.55*15.95*16.5 100M F6-246   None No 15u"
B50(660-07)F4-94-A016-B92 21.55*15.95*16.5 100M F4-94   None No 50u"
B50(660-08)F4-259-A013-B92 21.55*15.95*16.5 100M F4-259   None No 6u"
B50(660-09)PF4-147-A013-B12 21.55*15.95*16.5 100M PF4-147 PoE None No 6u"
B50(660-11)F4-94-A013-B92 21.55*15.95*16.5 100M F4-94   None No 6u"
B50(500-05)G8-187-A613-B52 23.15*16.1*16.76 Gigabit G8-187   GY/GY No 6u"
B50(500-07)G8-074-A113-B52 23.15*16.1*16.76 Gigabit G8-074   Y/G No 6u"

Spectifications:

Electrical   Mechanical
Current rating: 1 - 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120 - 150V AC   4 contacts---500g
Insulation resistance: 500MΩ Min   6 contacts---750g
Withstand voltage: 1500V RMS 50Hz or 60Hz 1 Min   8 contacts---900g
Contact resistance: 20mΩ Max   10 contacts---1050g
PoE rating: 15W, 350mA, 84V (For PoE product only) Retention strength: 7.7Kg between jack and plug
    Durability: 750 mating cycles min
Material
Housing: 1) glass filled PA66(ul 94v-0)
  2) glass filled PA46/LCP(ul 94v-0)
  3) glass filled PBT(ul 94v-0)
Spring wire: 1) 0.45mm dia phosphor bronze gold plating over nickel
  2) 0.35mm thickness phosphor bronze alloy
  selective gold plating over nickel
Shielding: 0.2mm thickness copper alloy with tin plated
Gold plating: 3μ″,6μ″,15μ″,30μ″,50μ″
Working temperature: -20°C-70°C, -40°C-85°C
Relative humidity: 70%±10% RH

Electrical Specifications at 25°C

Insertion
Loss
dB max
Return Loss dB min Crosstalk(dB TYP) Common Mode Rejection
(dB TYP)
Hipot(Vrms)
1-100MHz 1-30MHz 30-60MHz 60-80MHz 1-30MHz 30-60MHz 60-80MHz 1-50MHz 50-150MHz
-1.0 -18 -16 -12 -40 -35 -30 -30 -20 1500

download  B50(650-07)F4-94-A113-B12.pdf
